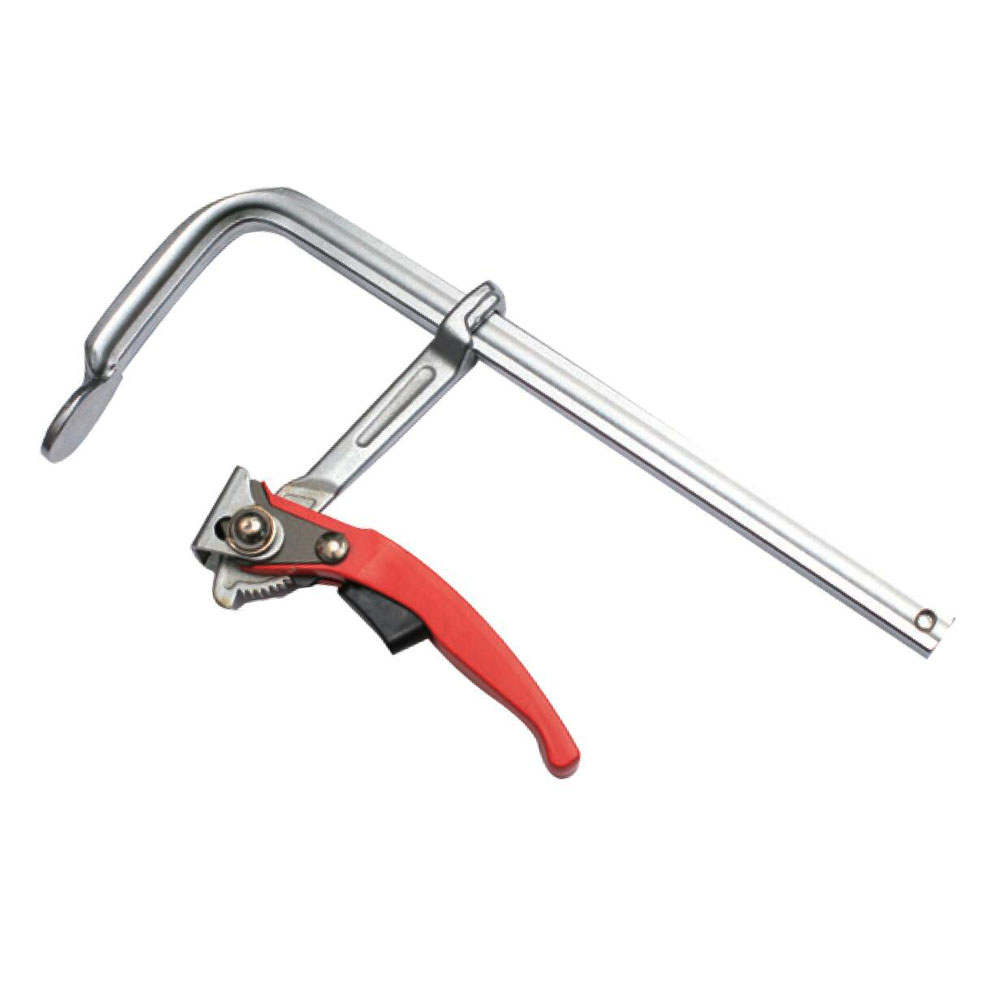

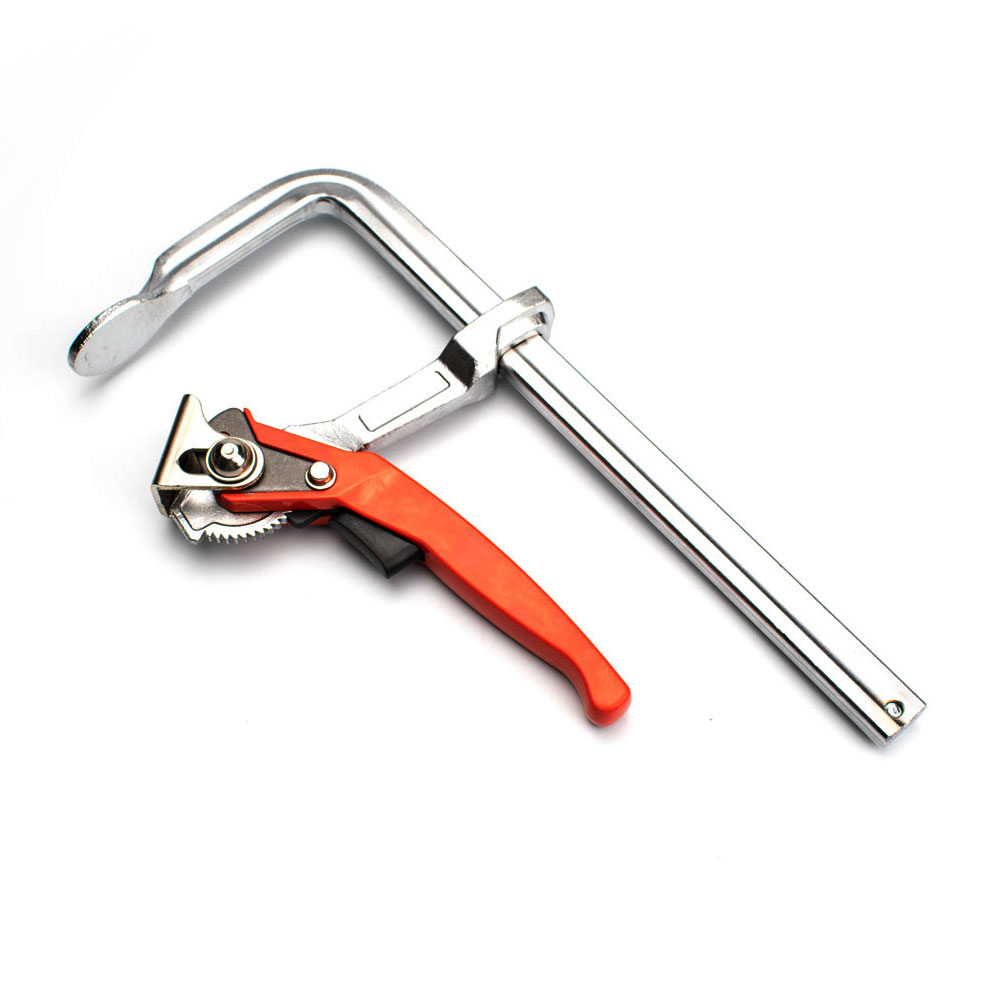

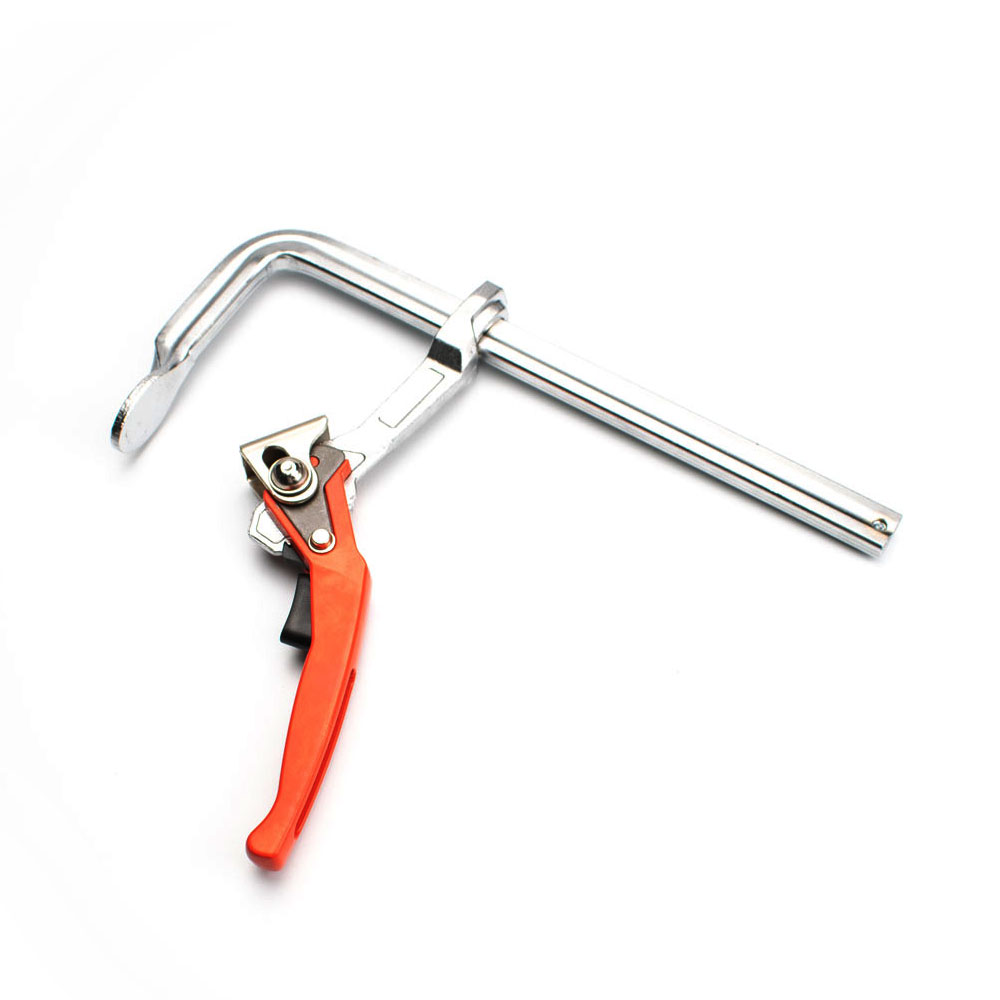

Quick release ratchet carpentry F clamp

Item No. 206012
Size SH-80, SH-100, SH-120, SH-120A, SH-140

Inquire Now

DETAILS

Heavy duty drop forged quick release ratchet carpentry F clamp

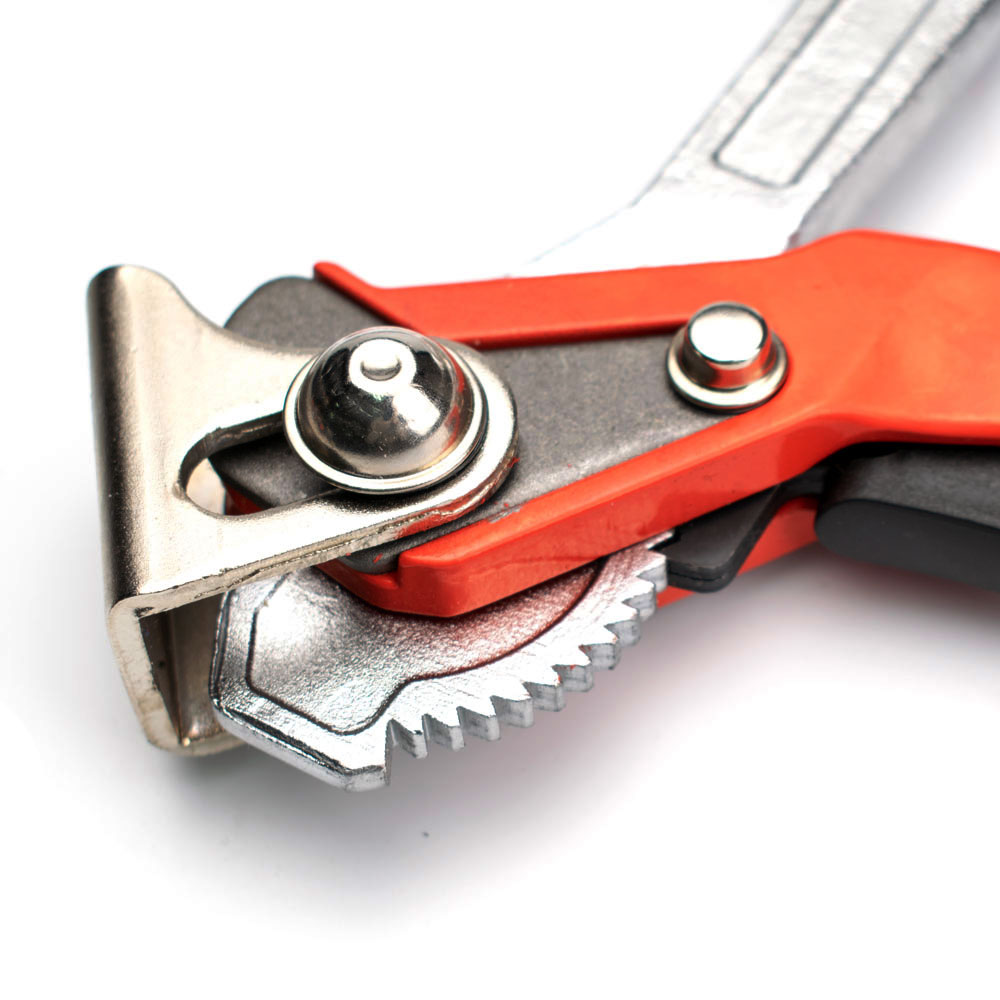

1 - Ratchet gear and quick release button save much time than traditional screw type F clamp.

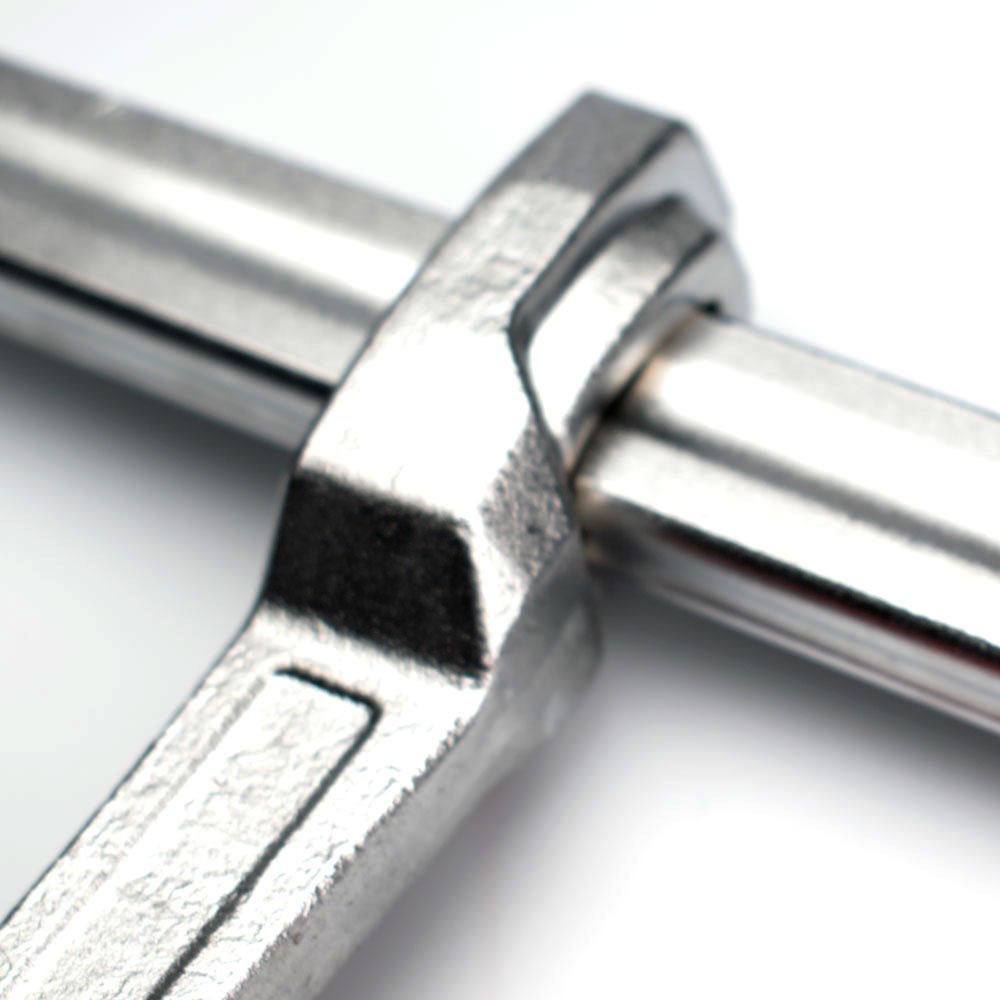

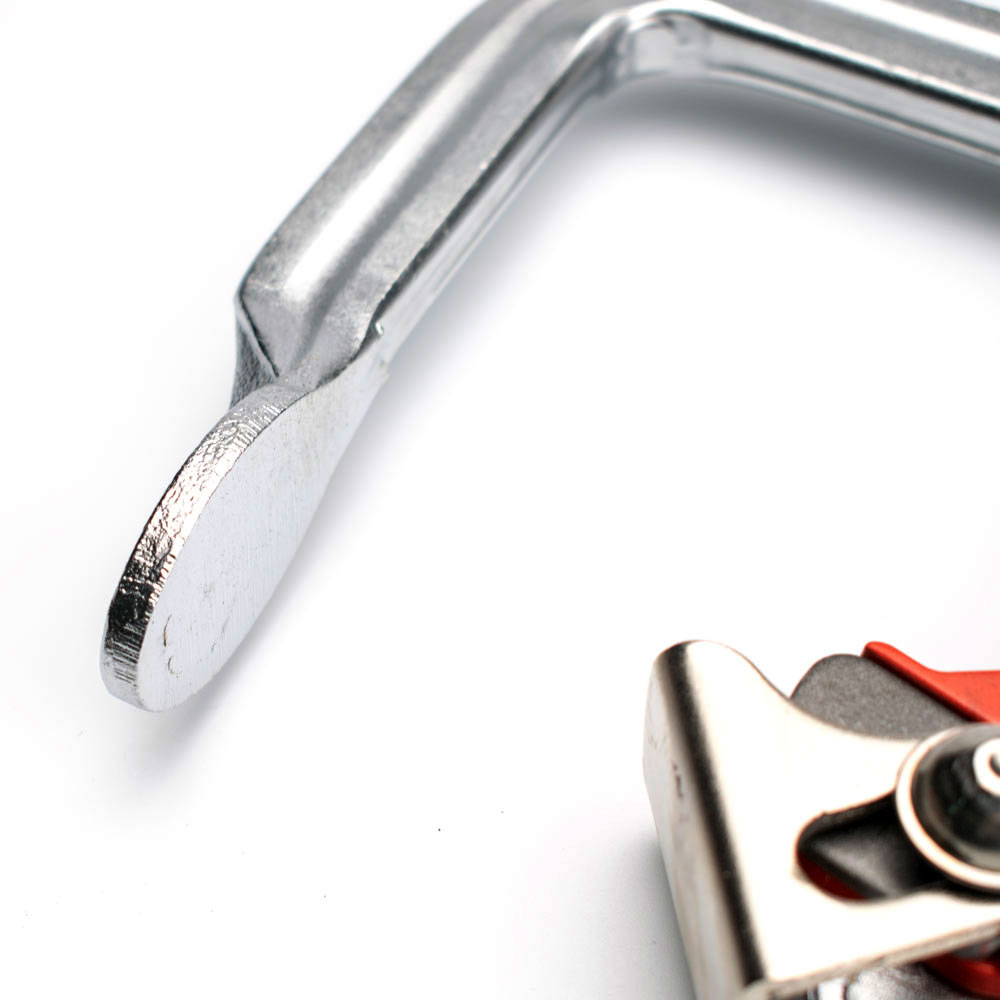

2 - Fully drop-forged steel arm and bar with heat-treating has strong clamp force.

Material	Drop-forged carbon steel with heat-treating
Surface	Chrome plated
Series	Available Size	Sliding Guide
SH-80	80×160, 80×200, 80×250, 80×300, 80×400mm	15.5×7.5mm
SH-100	100×200, 100×250, 100×300, 100×400mm	19.1×9.5mm
SH-120	120×200, 120×250, 120×300, 120×400, 120×500, 120×600mm	22×10.5mm
SH-120A	120×300, 120×400, 120×500, 120×600mm	24.6×12mm
SH-140	140×200, 140×300, 140×400, 140×500, 140×600mm	24.6×12mm
